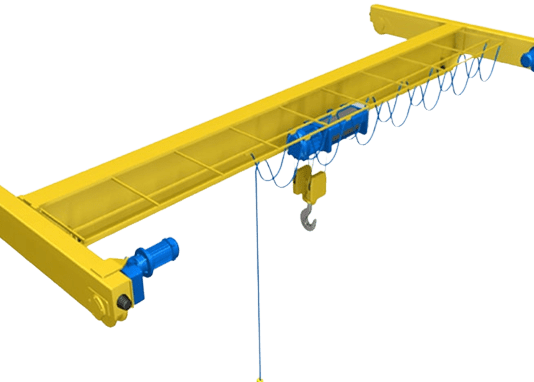

An Electric Overhead Travelling (EOT) Single Girder Crane features one main bridge girder supported by end carriages, with the hoist and trolley mounted underneath. This simple yet efficient configuration offers a cost-effective and space-saving lifting solution with load capacities ranging from 500 kg to 20 tons.
Because the hoist hangs from the bottom of the girder, the crane provides maximum floor clearance, making it ideal for factories with restricted headroom.
Why Choose EcoPlus for EOT Single Girder Cranes?
As seasoned EOT Single Girder Crane manufacturers, we bring together expert craftsmanship, engineering innovation, and client-focused customization to every build.
Key Benefits:
-
Designed for Efficiency: Lightweight structure with high operational output
-
Customized for You: Tailored to suit your plant layout and workflow
-
Budget-Friendly: Lower capital and operating costs
-
Minimal Civil Modifications Required
-
Boosts Productivity with Smooth Operation
Features of Our EOT Single Girder Crane
1. Space-Saving Design
Ideal for facilities with low headroom, our cranes maximize hook height and clear floor space for better mobility.
2. High-Quality Construction
Each crane is fabricated using IS-grade steel and precision-fitted parts, ensuring rigidity, durability, and low maintenance over time.
3. Reliable Hoisting Mechanism
Equipped with electric wire rope hoists or chain hoists, featuring smooth acceleration/deceleration, accurate load positioning, and minimal vibration.
4. Flexible Controls
We offer:
-
Push-button pendant stations
-
Wireless radio remote controls
-
Cabin control (if required for large spans)
5. Energy-Efficient Drives
All cranes are fitted with VVVF (Variable Voltage Variable Frequency) drives, ensuring:
-
Smooth speed variation
-
Reduced power consumption
-
Longer motor and gearbox life
Built-In Safety Features
Safety is not optional—it’s integrated into every EcoPlus EOT Single Girder Crane:
-
✅ Overload protection device
-
✅ Limit switches for hoist & travel
-
✅ Emergency stop switch
-
✅ Audible warning system
-
✅ Thermal protection for motors
-
✅ Anti-collision systems (for multi-crane bays)
📐 Technical Specifications
| Feature | Specification |
|---|---|
| Load Capacity | 500 kg to 20 tons |
| Span | Up to 30 meters (customizable) |
| Height of Lift | Up to 20 meters (as per site requirement) |
| Crane Type | Single Girder EOT Crane |
| Duty Class | M3 to M5 (as per IS 3177) |
| Hoist Type | Electric Wire Rope / Chain Hoist |
| Travel Mechanism | Electric motor with VVVF drive |
| Control System | Pendant / Radio Remote / Cabin Control |
| Standards | IS 807, IS 3177, ISO 9001:2015 Compliant |
Ideal Applications
Our EOT Single Girder Cranes are perfect for:
-
Light Manufacturing Units – Assembly lines, component movement
-
Fabrication Workshops – Sheet metal, frames, and parts
-
Warehouses & Logistics – Inventory movement and stacking
-
Construction Sheds – Beam lifting, shuttering formwork
-
Precast Units – Mold lifting and storage placement
Quality Assurance & Certifications
Every EcoPlus crane is backed by our ISO-certified production standards, rigorous in-house testing, and a customer-first support system.
-
ISO 9001:2015 – Quality Management
-
ISO 14001:2015 – Environmentally Responsible Manufacturing
-
ISO 45001:2018 – Occupational Health & Safety
We also provide load testing certifications and compliance documentation for third-party audits or inspections.
Advantages at a Glance
| Feature | Benefit |
|---|---|
| Lightweight Structure | Lower dead load, easier installation |
| Economical Design | Reduced steel use, lower crane runway cost |
| High Hook Approach | Maximizes floor space and movement area |
| Efficient Power Usage | Energy-saving drives and motor technology |
| Modular Parts | Easy servicing and spare part availability |
| Scalable Setup | Can be upgraded to automation or IoT integration |
